Using Aqara Temperature and Humidity Sensor with Home Assistant

As part of my heat pump preparation I thought it might be a good idea to have some baseline temperature statistics for the house.

I found the Aqara Temperature and Humidity Sensor which looked like a good option. I bought the three pack and then bought another three just a few days later. I now have them in the lounge, hallway, office, bedroom, summerhouse (gym) and loft (that is where my solar batteries and inverter are).

I could connect them straight to Home Assistant via Zigbee. I put Home Assistant in the pairing mode and pressed the button on the top. They were paired in seconds.

They provide the following data

  • Temperature

  • Humidity

  • Pressure

  • Battery

I am only interested in temperature and humidity. Below are the two cards that I have made in Home Assistant along with the YAML. I am only interested in humidity in the summerhouse and the loft.

I am using the Mini Graph Card. I am still playing with the gradients. The gradient is from dark blue (cold) to shades of green (comfortable) to dark red (very hot)



Aqara Temperature Sensor using the Mini Graph Card

type: custom:mini-graph-card
entities:
  - entity: sensor.lounge_aqara_sensor_temperature
name: Lounge Temperature
smoothing: true
show:
  points: hover
  average: true
  extrema: true
  fill: false
points_per_hour: 4
hours_to_show: 24
line_width: 5
color_thresholds:
  - value: 15
    color: '#193675'
  - color: '#153E95'
  - color: '#1246B6'
  - color: '#0B4FE3'
  - color: '#0B92E3'
  - value: 19
    color: '#00FF72'
  - color: '#09E26A'
  - color: '#0F984B'
  - color: '#0CA851'
  - color: '#0AC95F'
  - value: 25
    color: '#FA5151'
  - color: '#F14040'
  - color: '#EC2323'
  - color: '#EA0C0C'
  - color: '#BE0101'
  - value: 30
    color: '#550000'


Aqara Temperature Sensor using the Mini Graph Card with additional humidity

type: custom:mini-graph-card
entities:
  - entity: sensor.gym_aqara_sensor_temperature_temperature
    show_state: true
  - entity: sensor.gym_aqara_sensor_temperature_humidity
    show_state: true
    show_graph: false
name: Gym Temperature
smoothing: true
show:
  points: hover
  average: true
  extrema: true
  fill: false
points_per_hour: 4
hours_to_show: 24
line_width: 5
color_thresholds:
  - value: 0
    color: '#193675'
  - color: '#153E95'
  - color: '#1246B6'
  - color: '#0B4FE3'
  - color: '#0B92E3'
  - value: 15
    color: '#00FF72'
  - color: '#09E26A'
  - color: '#0F984B'
  - color: '#0CA851'
  - color: '#0AC95F'
  - value: 25
    color: '#FA5151'
  - color: '#F14040'
  - color: '#EC2323'
  - color: '#EA0C0C'
  - color: '#BE0101'
  - value: 30
    color: '#550000'

I have had one slight issue. The battery percentage was plummeting very quickly. I have opened a case with Aqara. Saying that they have now stabilised. I found this very old thread on Reddit reporting a similar problem. I also saw this in a Mastodon post and that user has reported the same issue, but his have also stabilised



Aqara battery levels on the 7th March

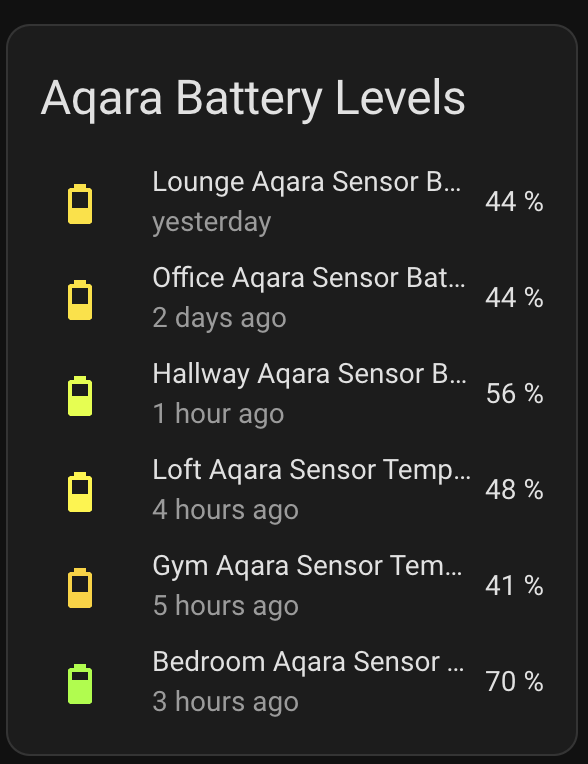

Aqara battery levels on the 10th March

Aqara battery levels on the 10th March

This is the complete Home Assistant dashboard that I created. It has some other room information. I will be remaking this now that we have sections in Home Assistant
